DK-1100B DIKAI Ink roll coder with encoder/Automatic online continuous coding machine/Expiry date printing machine

FOB Reference Price:Get Latest Price
$1.00 - $500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Material:
Carton box with foam inside
Packaging Type:
Cartons
Type:
Coding Machine
Condition:
New
Automatic Grade:
Automatic
Application:
Installed on HFFS to print date, batch No., etc.
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
DIKAI
Model Number:
DK-1100B
Driven Type:
Electric
Voltage:
AC220V±10V 50/60Hz
Power:
130W
Dimension(L*W*H):
Depends upon the bracket length
Weight:
11KG
Certification:
ISO9001
Name:
DK-1100B Ink roll printer
Consunmble:
Hot ink roll
Printing Area in Axial direction:
≤13lines; max 20 characters/line
Printing Area in Radial direction:
≤10lines; max 13 characters/line
Printing Speed:
≤300times/minute
Print information 1:
Expiry date
Print information 2:
Batch date
Print information 3:
Different kind of numbers, letters etc.
Print unit weight:
2kgs
Controller box weight:
1kg
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed in carton box; with foam inside; stable enough
Port
SHANGHAI
Lead Time :
3-5 days after order being confirmed
Product Description

DK-1100B Ink roll coder

* Most widely used coding machine in the world at present

* Adopt DK core patented technology, ensures the stability and clarity of the prints

*Adopting the updated temperature control system, longer service life time.

* Warranty period up to 15 months.

*Almost 0 after-sales service needed according to record

Print area
T-Type (Axial): ≤13 lines; max. 20 characters/line
R-type(Radial):  ≤10 lines; max. 13 characters/line
Type sizes
T-Type: 1.5T; 2.0T; 2.5T; 3.0T; 2.5*7T
R-type: 3.5R; 4.5R; 5.5R
Pouch length
≥38mm (4-up printer)
≥75mm (2-up printer)
Ink roll required
36*32; 36*35; 36*40mm
Electricity
AC220V±10V, 50/60Hz
Power
130W. 2A fuse
Weight
Print unit: 2kgs; controller box: 1kg
Working principle

1. The Brass letters contact the Hot Ink Roll and get the ink;

2. The Brass letters are driven by the Rubber Wheel and Pressure Roller to keep moving, then touch the packing film to produce imprint.

3. The Rubber Wheel and Rubber Roller must keep in good contact to ensure the clarity and consistency of the printing.


Machine type

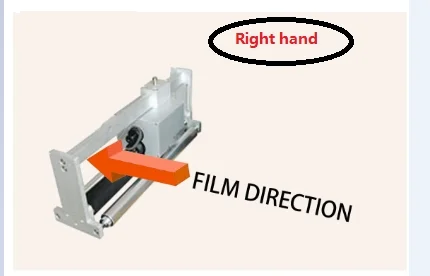

One is Right hand machine

After choosing the installation position, if packaging film is from right to left, then should use Right hand machine

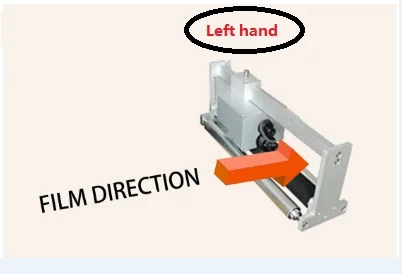

The other one is Left hand machine

After choosing the installation position, if packaging film is from left to right, then should use Left hand machine

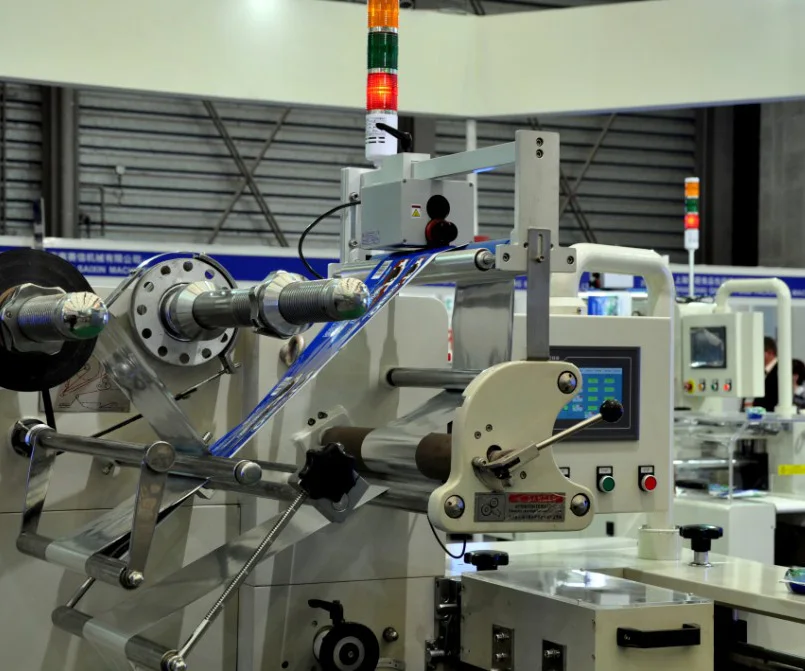

Installation picture
Packing & Delivery

* Packed in carton box; with foam inside; stable enough

* Can be sent within 3-5 days after order being confirmed
