Quick Details

  • Type: Other
  • Condition: New
  • Plate Type: Letterpress
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: DK
  • Model Number: DK-1100A Ink Roll Coder
  • Usage: date printer
  • Automatic Grade: Semi-Automatic
  • Color & Page: Single Color
  • Voltage: 220V
  • Gross Power: 130W
  • Dimensions(L*W*H): 120*100*170mm
  • Weight: 3kg
  • Certification: CE; ISO9001.2008
  • After-sales Service Provided: Overseas third-party support available
  • Product name: Ink Roll Coding Machine
  • Max speed: 300times/min
  • Print Area: Max 13 lines, 20 characters per line
  • Print Info: MFG/ EXP dates, Lot Number, Serial Number, English Letters
  • Package Contents: 1* printer, 1* control box, 1* mounting bracket, 1 box brass types
  • Package: carton

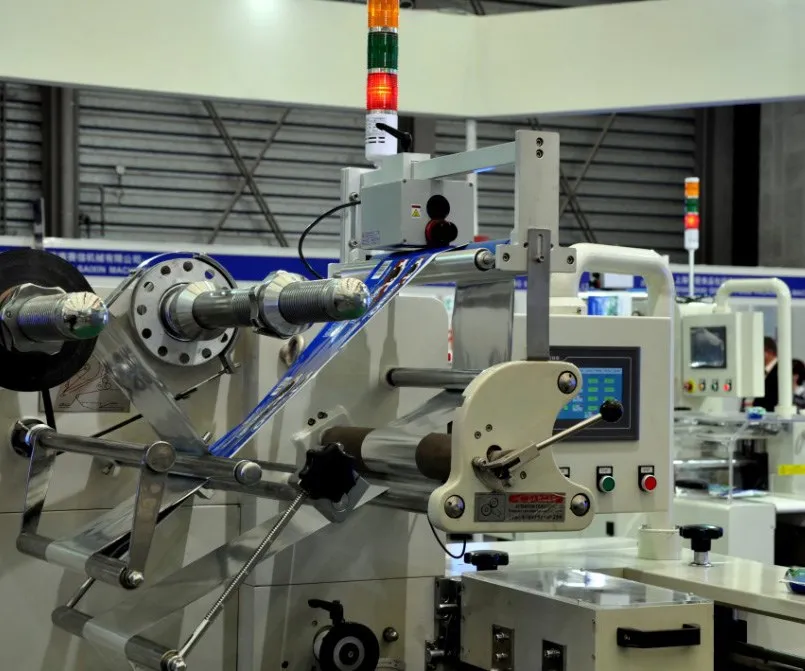

  • Application: Flow Packer, Vertical Packing Machine
  • Warranty: 18 months
  • DIKAI: 22 years dedication in coding area
  • Certificates: CE; ISO 9001: 2008

Packaging & Delivery

Packaging Details in standard export carton
Delivery Time 1-2 weeks after confirmation
Product Description

Product Application

DIKAI DK-1100A Ink Roll Coder was developed by DIKAI own R&D team, in the past 10 years, comulative sales quantity has reached 100,000 sets. It can be integrated with flow packers, vertical packing machine for tracing and printing production date, lot number, expiry date, etc. automatically. Compact in structure, convenient in assembling and using, fast in printing with large printing cover, flexible in formatting types, and much shorter in the minimum printing distance, it has widely used in food, daily chemicals and paper, drug, seeds industries. Adopts LCD touch screen, greatly extend use life of the controller, even no need maintanence.

SPECIFICATIONS FOR DK-1100A Automatick Ink Roll Batch Coder Machine
Print Area
Axial=40mm; Radial=45.5mm
Pouch Length
≥38mm (4-up printer)
T-type (Axial) up to 13lines, max 20characters/ line
≥75mm (2-up printer)
R-type (Radial) up to 10lines, max 13characters/line
Type of Print Head
Right-hand (Clockwise)
Font Size
T-type 1.5mm, 2.0mm, 2.5mm, 3.0mm*3.5mm
Left-hand (Counter-clockwise)
R-type 3.5mm*3.5mm, 4.5mm, 5.5mm
Control Box
LED display
Print Speed
up to 300 prints/minute
Ink Roll Required
¢36*40mm

Surface Speed

up to 35 meters/minute
Electrical
AC100-230V, 50/60Hz
Weight
Print Head 2.0kg Control box 1.0kg
Power
130W, 2A Fuse
Dimensions

Print Head 120mm*100mm*170mm (L*W*H)

Ctrol Box 180mm*180mm*102mm (L*W*H)

Temperature Range
4°c-40 °c

Main Features

1) Patented Technology

2) Stable printing, No missing printing
3) Mechanical design, long lifetime

4) User friendly, Easy to be installed and operated

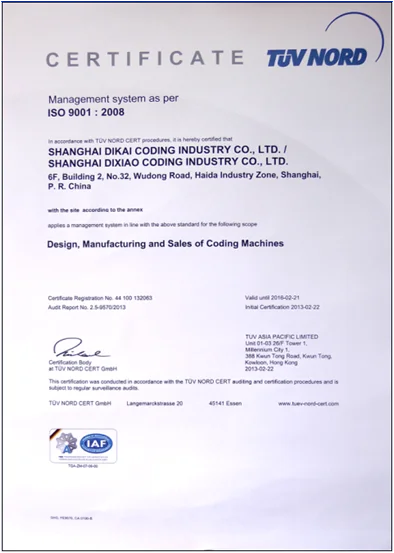

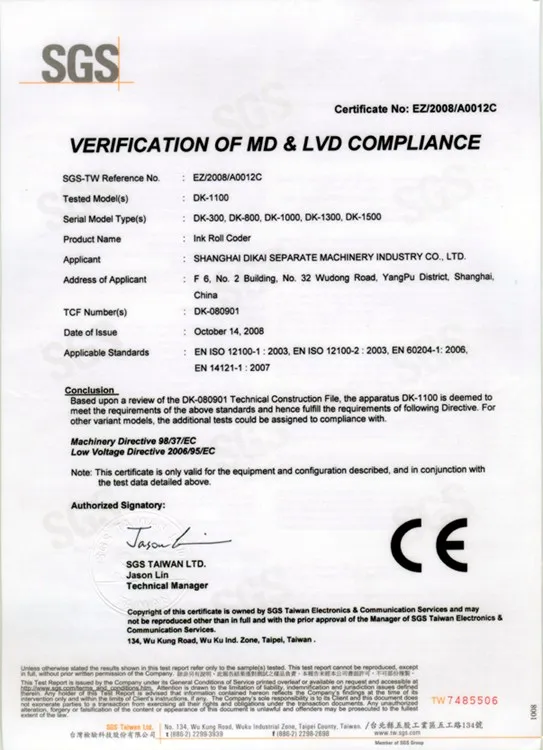

Certifications
Detailed Images

Machine Parts

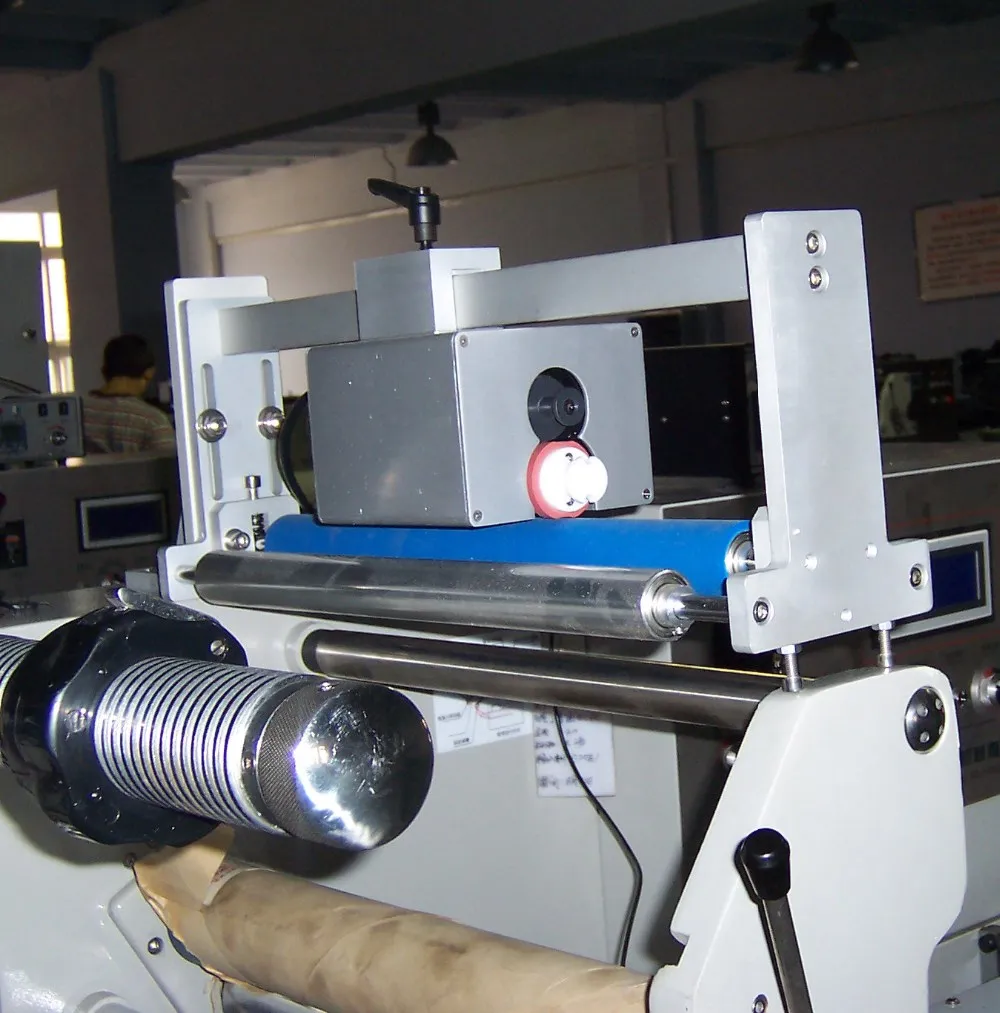

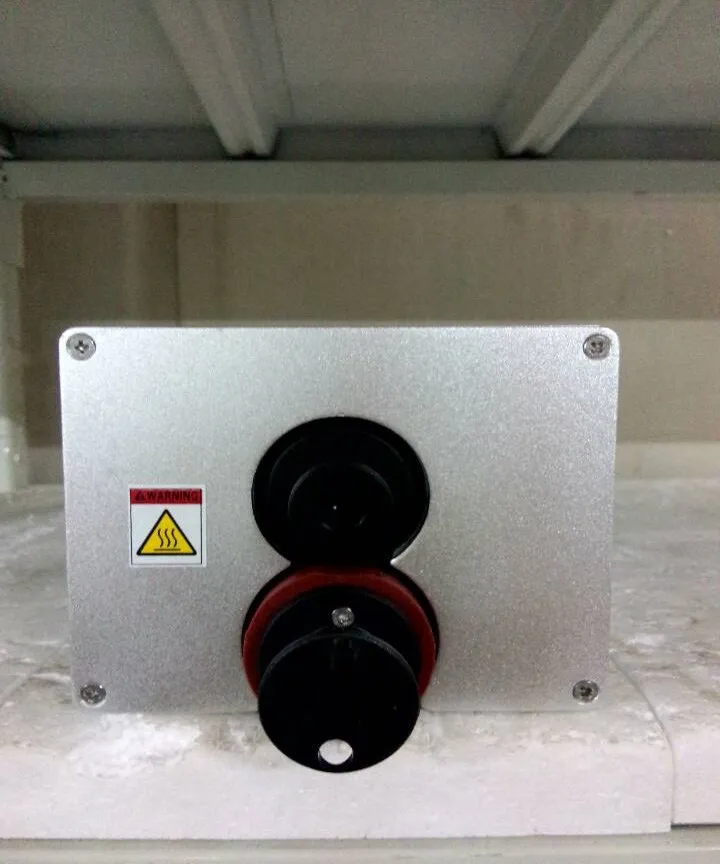

Name: Printer Unit

Brand: DIKAI

Advantage: Patented mechanical design, makes print more stable. Even no need after-sales maintanence.

Main Features

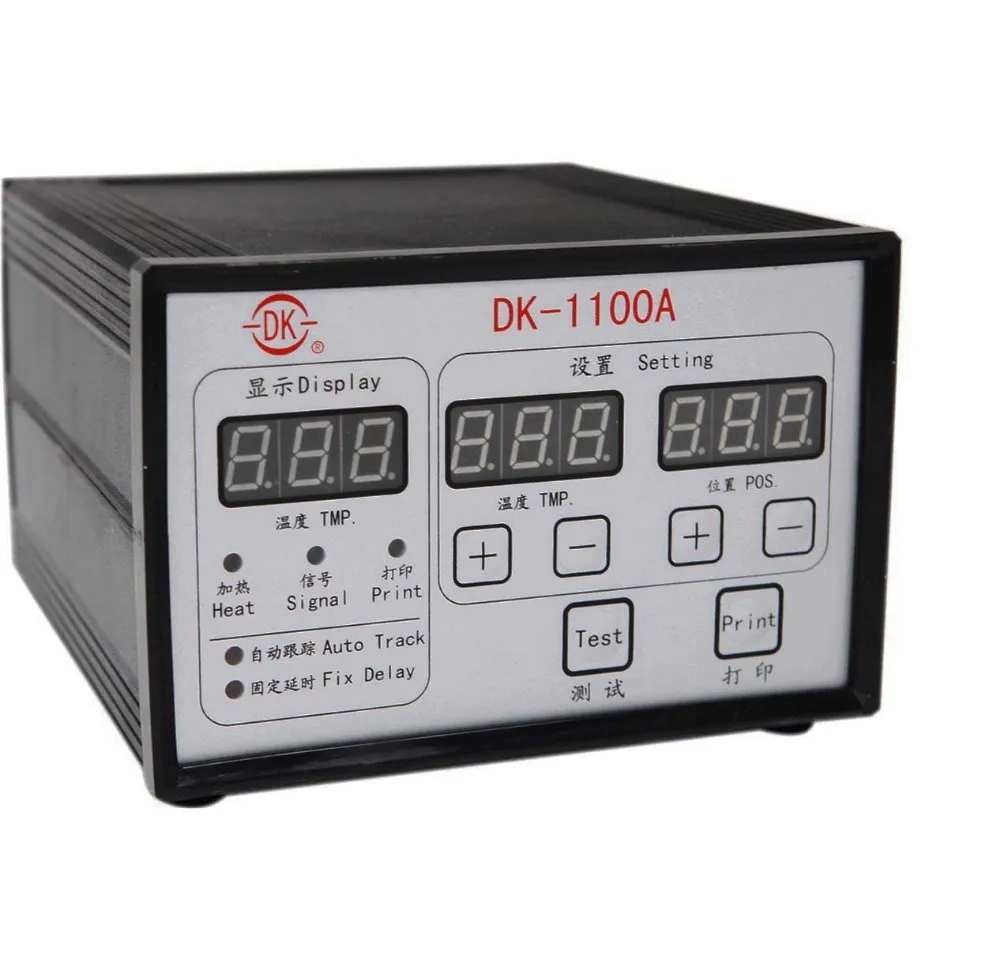

Name: Controller
Brand: DIKAI
Advantage: Led display, make sure long-time use. User friendly.

Machine Parts

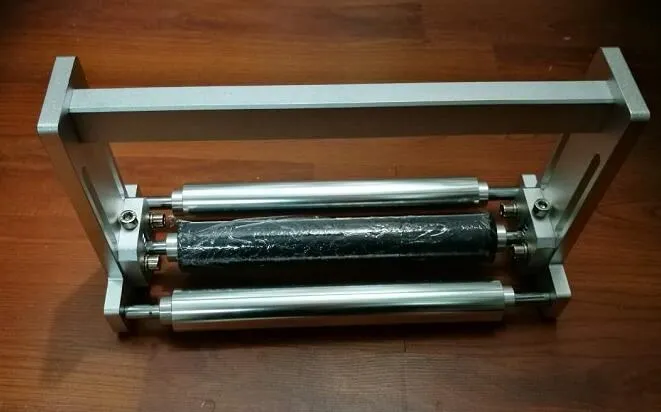

Name: Mounting Bracket
Brand: DIKAI
Diension: Normally 350mm, 500mm, 600mm, can be customized as requsted.

Clarification

Working Mode

1. The Brass letters contact the Hot Ink Roll and get the ink;
2. The Brass letters are driven by the Rubber Wheel and Pressure Roller to keep moving, then touch the packing film to produce imprint.
3. The Rubber Wheel and Rubber Roller must keep in good contact to ensure the clarity and consistency of the printing.

Left/ Right Hand Option

Refer to below images, depend on the film direction.

Or you can ask DIKAI colleague for details.

Quality Control

IQC-IPQC-Outgoing Q.C is strictly executed.

To ensure every DK-1100A Automatick Ink Roll Batch Coder Machine you get is up to standard, we test them at least 48 hours before leaving DIKAI warehouse.

Packing & Delivery

Package:

Normally in standard export carton packing, can be customized as requested;

Delivery: 1-2 weeks after order confirmation.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample printing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine

* Third party service center available

* Engineers available to service machinery overseas

Related Products

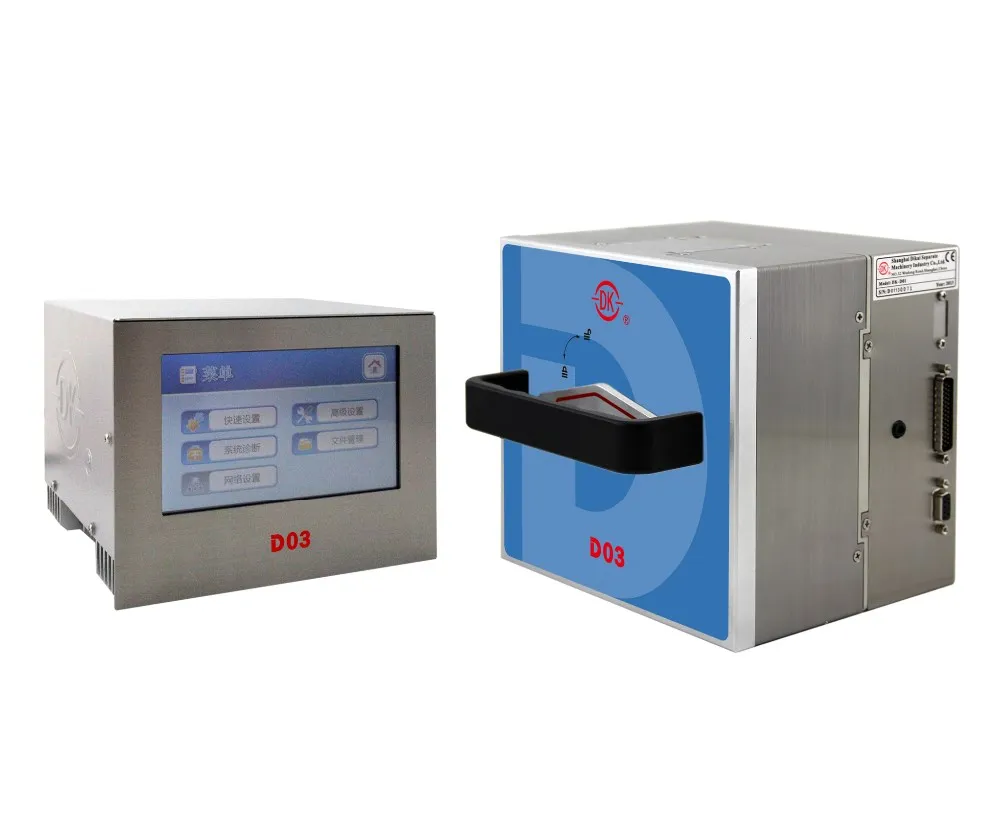

D03 Thermal Transfer OVerpinter

https://www.alibaba.com/product-detail/D03-THERMAL-TRANSFER-OVERPRINTER-FOR-PACKAGE_1634162627.html?spm=a2700.7724838.2017115.272.b0d5603Kepn3w

D05 Thermal Tranfer Overprinter

https://www.alibaba.com/product-detail/DIKAI-D05-Coding-Machine-for-Pouches_60246264887.html?spm=a2700.7724838.2017115.100.b0d5603Kepn3w

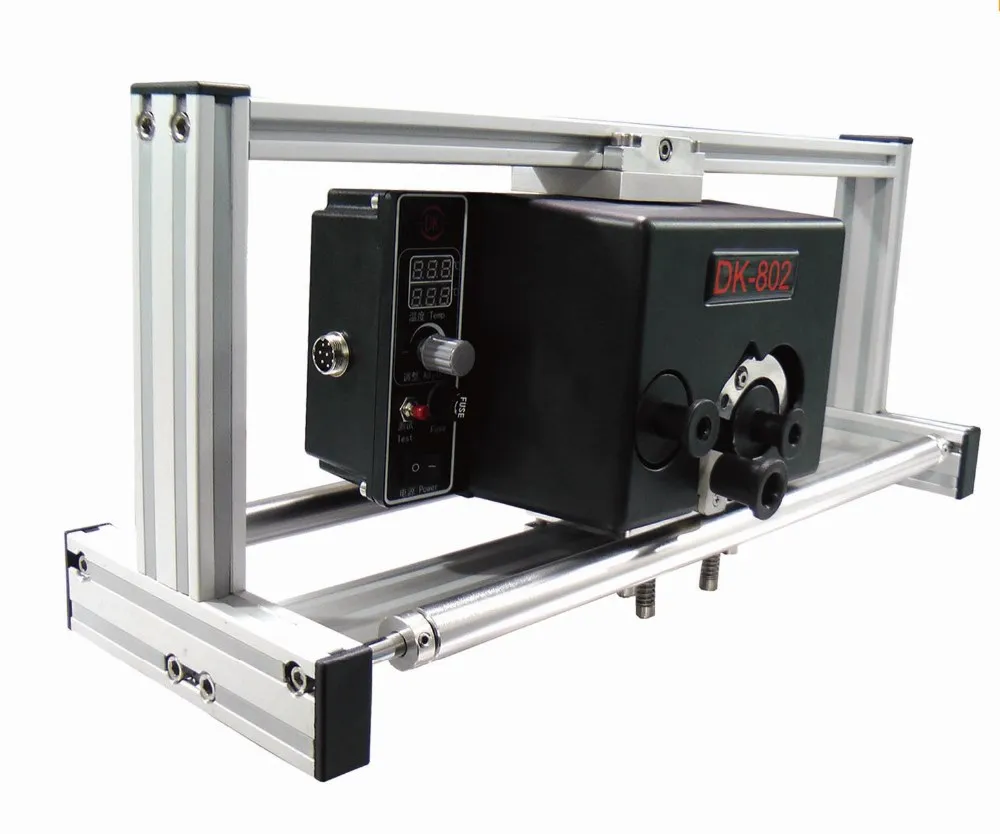

D02 Intermittent Ink Roll Coder
