DK-1100B MFG/ EXP Date Coding Machine

FOB Reference Price:Get Latest Price
US $200-500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Coding Machine
Condition:
New
Automatic Grade:
Automatic
Application:
Installed on HFFS to print date, batch No., etc., Flow Packers, Horizontal Packing Machines
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
DK
Model Number:
DK-1100B MFG/ EXP Date Coding Machine
Packaging Material:
Carton box with foam inside
Packaging Type:
Cartons
Driven Type:
Electric
Voltage:
AC220V±10V 50/60Hz
Power:
130W
Dimension(L*W*H):
120*100*170mm
Weight:
3KG
Certification:
CE; ISO9001:2008; MSDS
Name:
DK-1100B MFG/ EXP Date Coding Machine
Consumable:
Hot ink roll
Printing Speed:
≤300times/minute
Print Speed:
40 meters/minute
Printing Area in Axial direction:
≤13lines; max 20 characters/line
Printing Area in Radial direction:
≤10lines; max 13 characters/line
Package:
printer, controller, mounting bracket, brass letters, ink roller
DIKAI:
22-YEAR DEDICATION IN CODING AREA
Warranty:
15 months after leaving DK warehouse
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed in carton box; with foam inside; stable enough
Port
Chinese Ports
Lead Time :
1-2 weeks after order being confirmed
Product Description

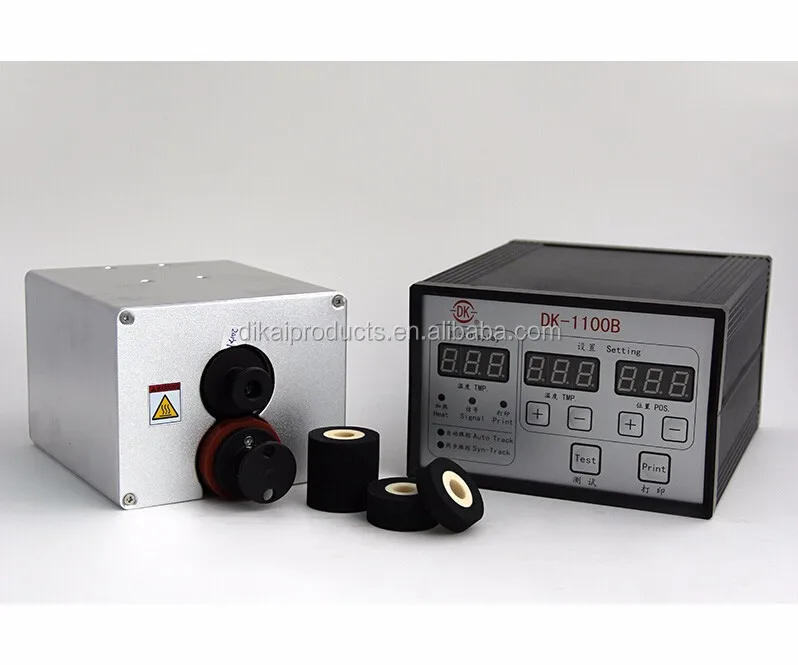

DK-1100B MFG/ EXP Date Coding Machine

* Most widely used coding machine in the world at present

* Adopt DK core patented technology, ensures the stability and clarity of the prints

*Adopting the updated temperature control system, longer service life time

* Warranty up to 15 months.

* User friendly, easy to learn and to be operated

* Almost 0 after-sales service needed according to record

Print area
T-Type (Axial): ≤13 lines; max. 20 characters/line
R-type(Radial):  ≤10 lines; max. 13 characters/line
Type sizes
T-Type: 1.5T; 2.0T; 2.5T; 3.0T; 2.5*7T
R-type: 3.5R; 4.5R; 5.5R
Pouch length
≥38mm (4-up printer)
≥75mm (2-up printer)
Ink roll required
36*32; 36*35; 36*40mm
Electricity
AC220V±10V, 50/60Hz
Power
130W. 2A fuse
Weight
Print unit: 2kgs; controller box: 1kg

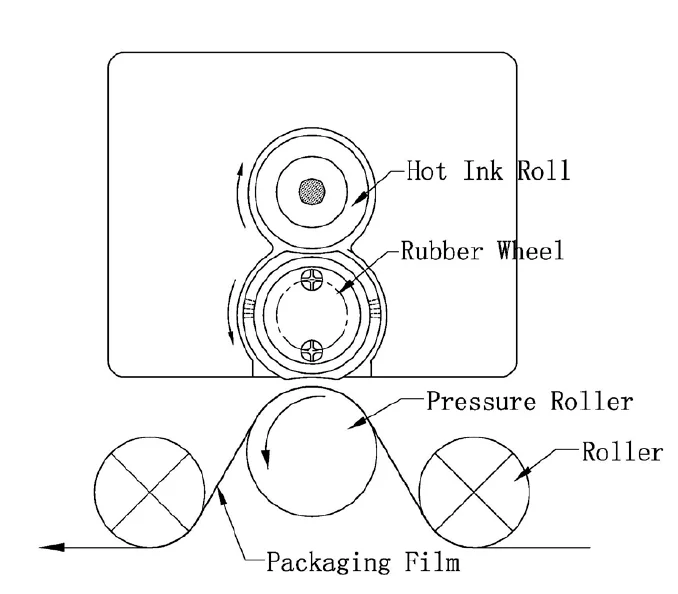

Working principle

1. The Brass letters contact the Hot Ink Roll and get the ink;

2. The Brass letters are driven by the Rubber Wheel and Pressure Roller to keep moving, then touch the packing film to produce imprint.

3. The Rubber Wheel and Rubber Roller must keep in good contact to ensure the clarity and consistency of the printing.

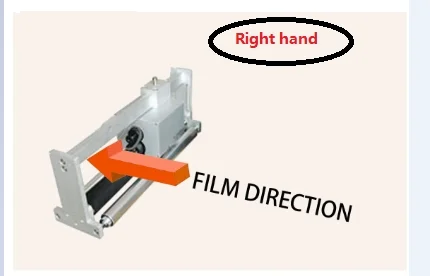

Machine type

One is Right hand machine

After choosing the installation position, if packaging film is from right to left, then should use Right hand machine

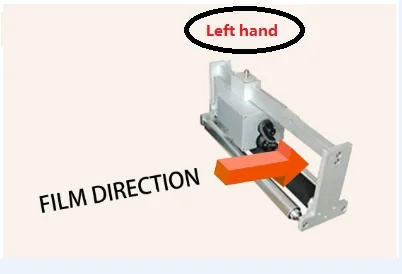

The other one is Left hand machine

After choosing the installation position, if packaging film is from left to right, then should use Left hand machine

Quality Control

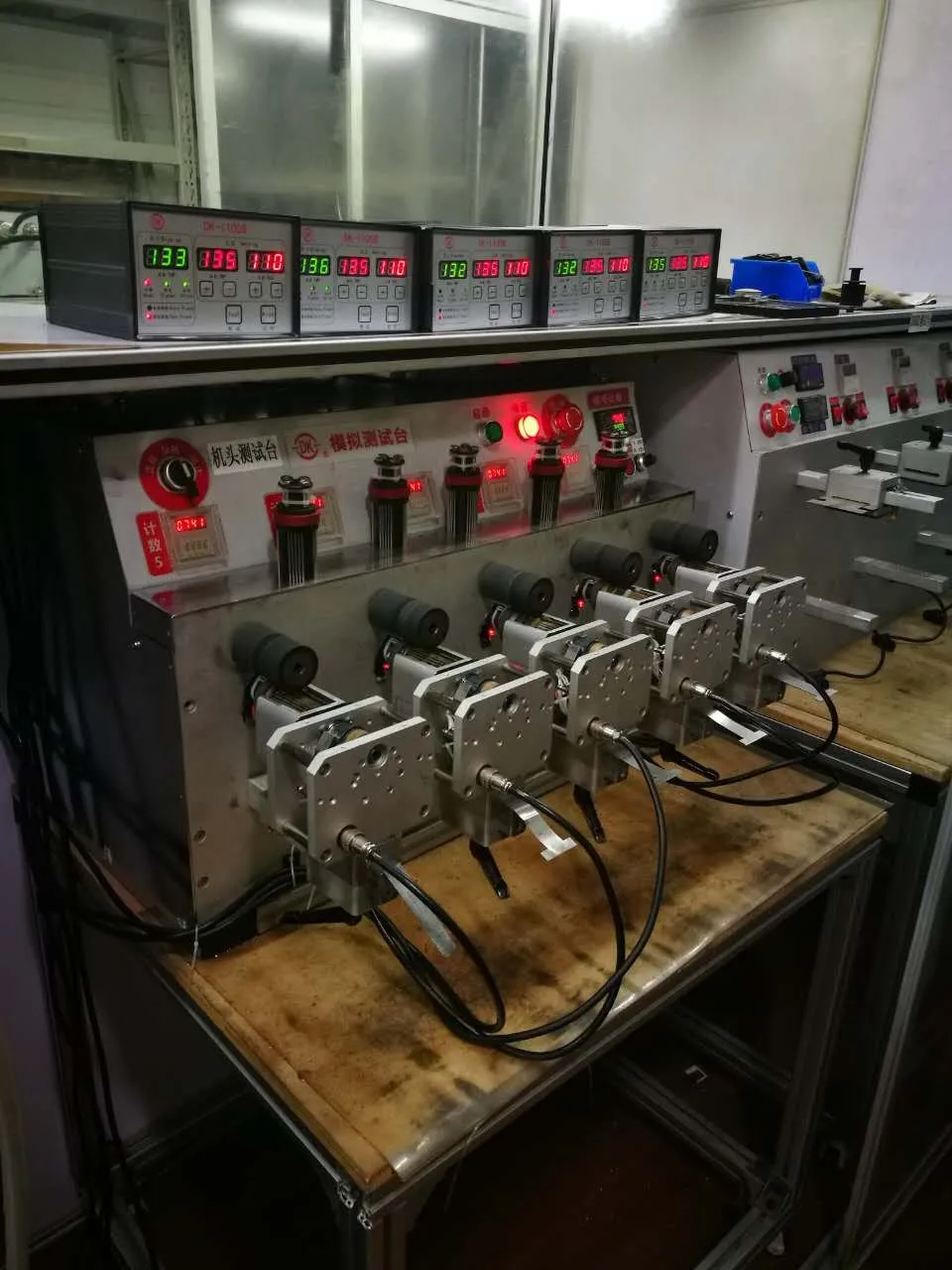

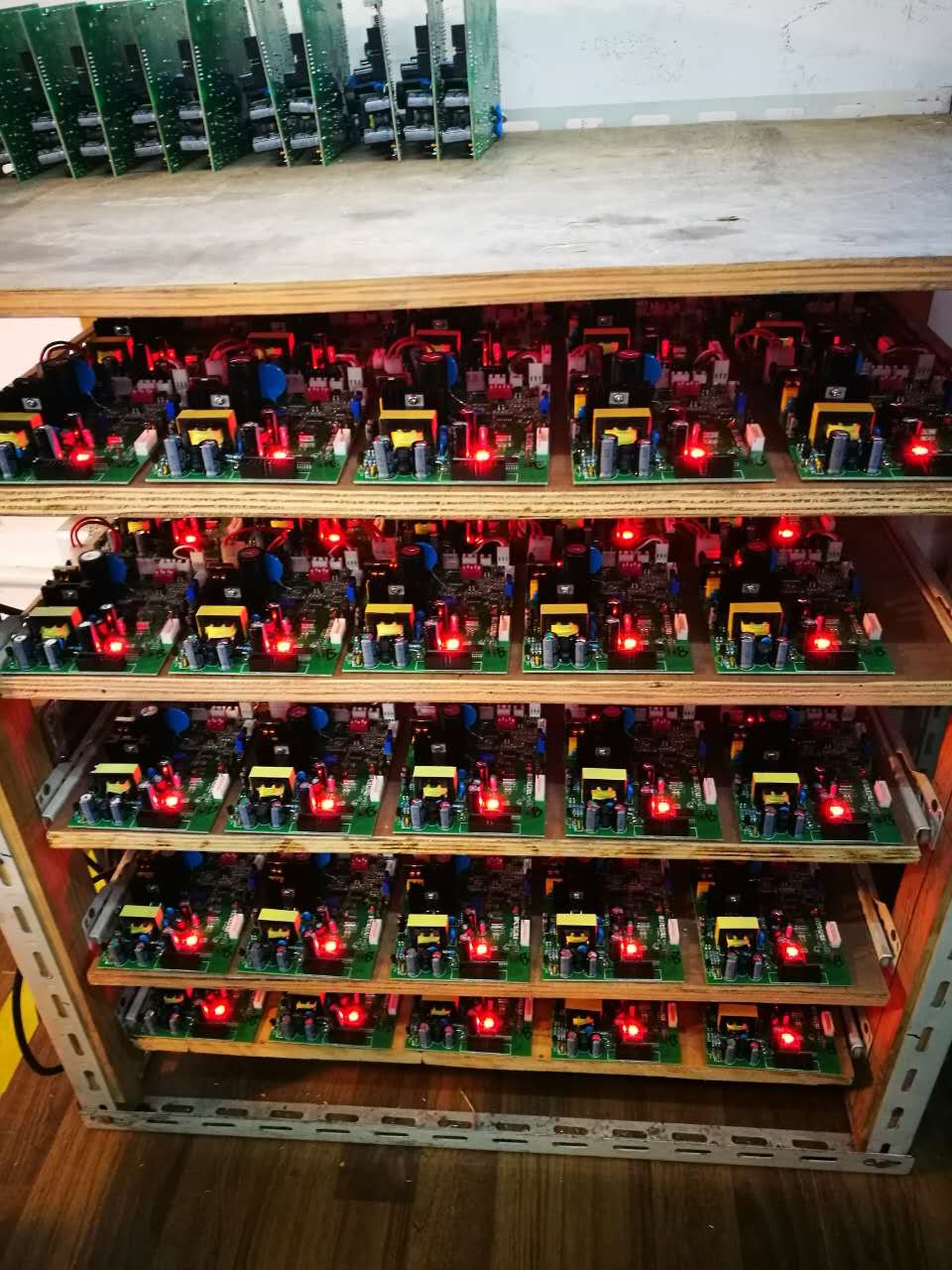

To ensure the quality of each Ink roll coder machine is up to standard, they will be examined and tested for at least 48 hours before delivery.

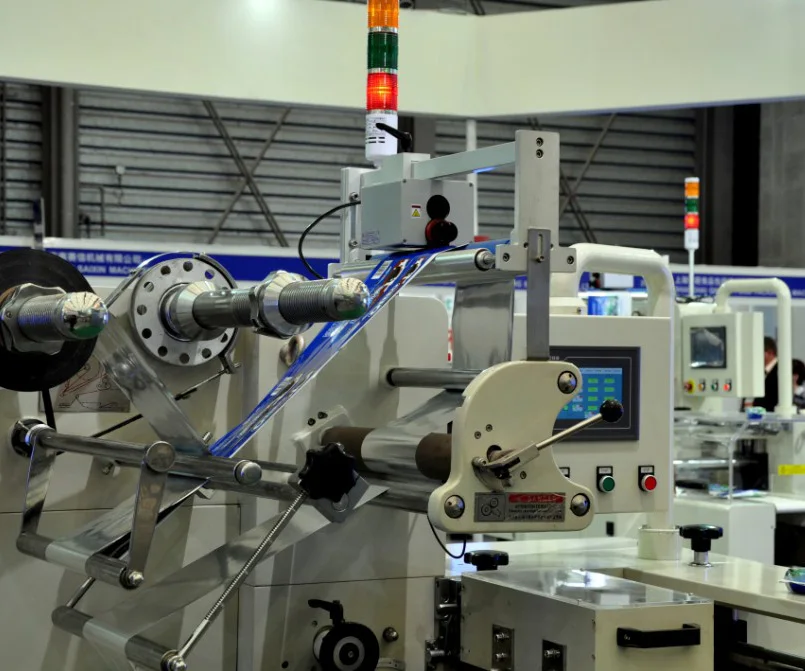

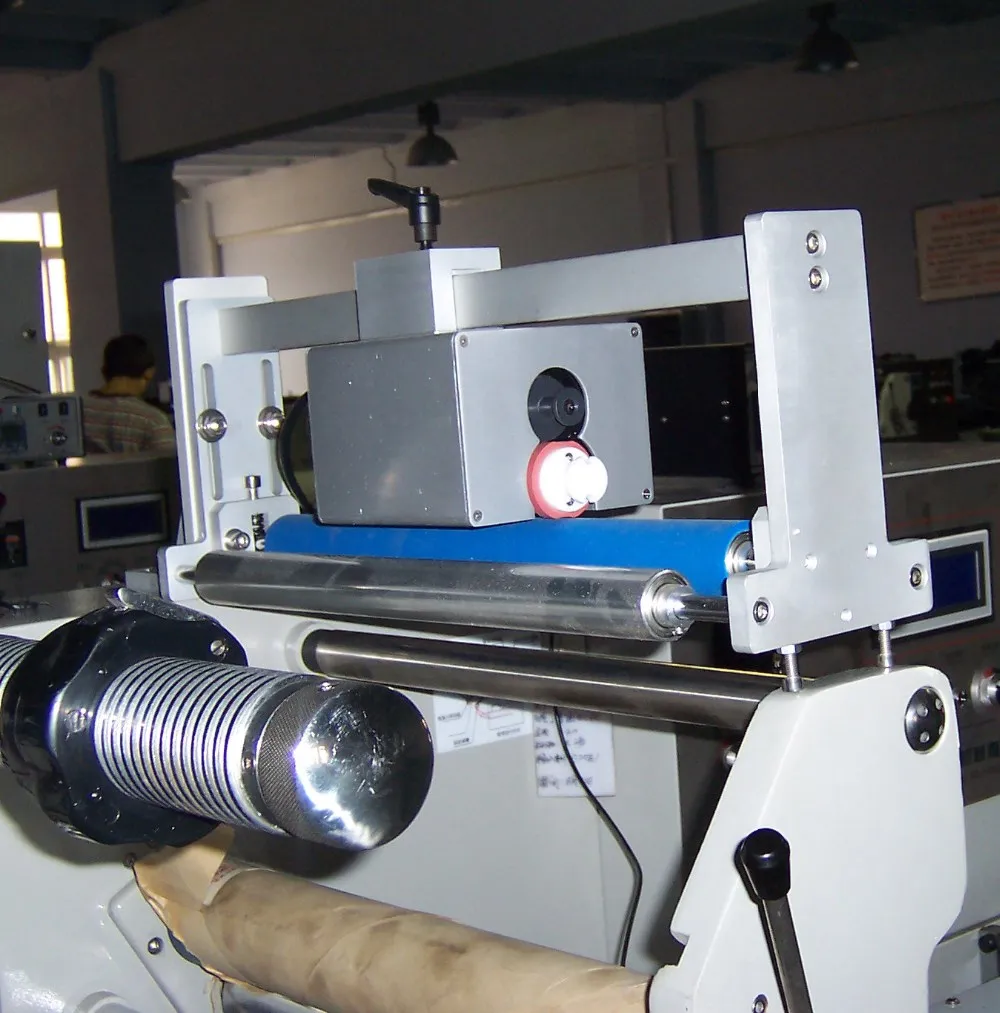

Installation picture

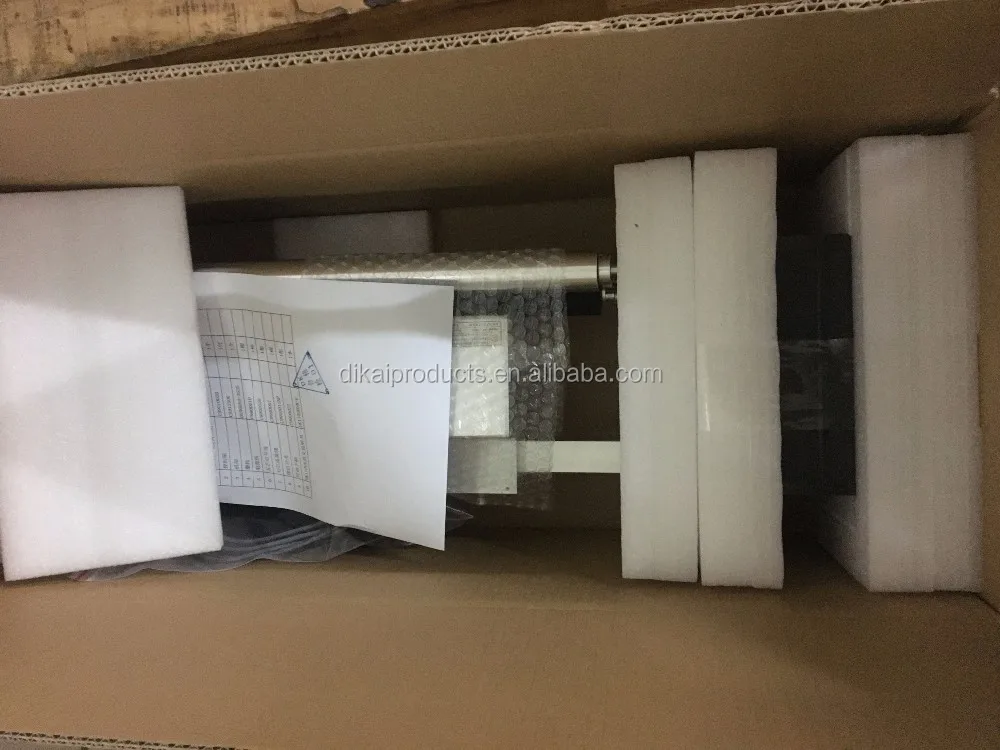

Packing & Delivery

* Packed in carton box; with foam inside; stable enough

* Can be sent within 3-5 days after order being confirmed
