DIKAI D05 Thermal Transfer Overprinter/ installed on horizontal packaging machine/date and QR printer

FOB Reference Price:Get Latest Price
US $1-2 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Coding Machine
Condition:
New
Automatic Grade:
Automatic
Application:
Installed on packgaing machine to print date, barcode, logo etc.
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
DIKAI
Model Number:
DIKAI D05 Thermal Transfer Overprinter
Packaging Material:
Carton box
Packaging Type:
Cartons
Driven Type:
Electric
Voltage:
AC 220V/50Hz 110V/60Hz
Power:
200W
Dimension(L*W*H):
188*190*180mm (L*W*H)
Weight:
16kg
Certification:
CE, ROHS, MSDS
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
D05 Thermal Transfer Overprinter
Print head:
53mm width; Kyocera 300DPI
Feature:
Intermittent and continuous combined
Max. Print area:
53mm*100mm
Printing Speed:
5-32 m/minute
Print unit size:
210mm*210mm*180mm
Controller box size:
233mm*180mm*128mm
Interface:
USB; RS232
Power supply:
AC100-240V 50/60HZ
Air supply:
6bar/90psi(max.),dry,clean
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Packing
Port
CHINA PORTS
Lead Time :
1-2 weeks after order and payment being confirmed
Product Description

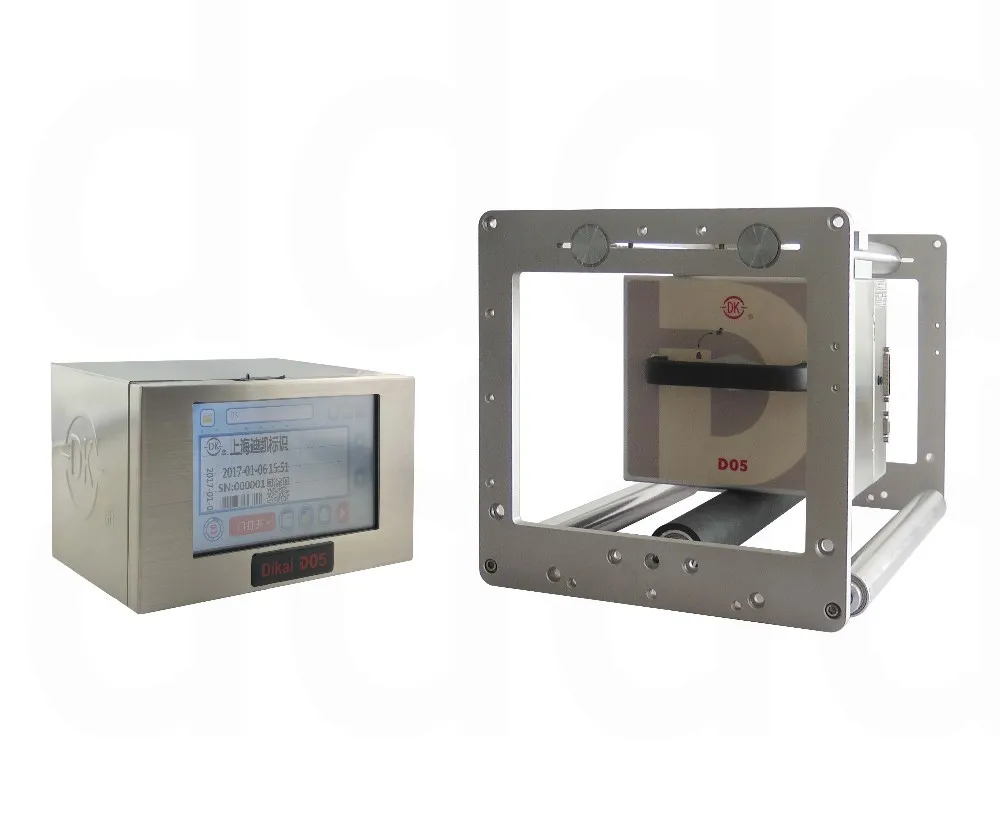

D05 Thermal Transfer Overprinter

With 53mm printhead, DIKAI D05 is one of most cost-effective smart coding machines, provides excellent solutions to soft-packaging coding in a wide range of fields like food, pharmacy, daily use chemicals, seeds, daily use paper and financial bill etc.

It has two types:
One is Right hand machine; the other one is Left hand machine.


Features:


1) Continuous & Intermittent Combined
2) 53mm Kyocera Printhead; 300DPI
3) Print real time, variable date, barcode, QR Code ect.
4) Low cost

5) Easy to operate


Application:


*Horizontal Continuous packaging machine
*Vertical Intermittent packaing machine
*Labeling Machine

*Feeder


Specification
Print Head
53mm, Kyocera; 300DPI
Print Area
Intermittent: 53mm*70mm
Continuous: 53mm*100mm
Ribbon Size
55mm*600m
Print Frequency
Intermittent:up to 300PPM
Continuous:up to 200PPM
Power
200w
Environmental Operating Temperature
0-40℃
Relative Humidity
10%~95% ( non- condensing)
Air Supply
6bar/90PSI(MAX) dry ,clean
Weight
print head:8.5kg, control box:2.0kg
Dimension
Print Unit:         210mm*210mm*185mm(L*W*H)
Controller box: 233mm*180mm*128mm(L*W*H)
Detailed Images

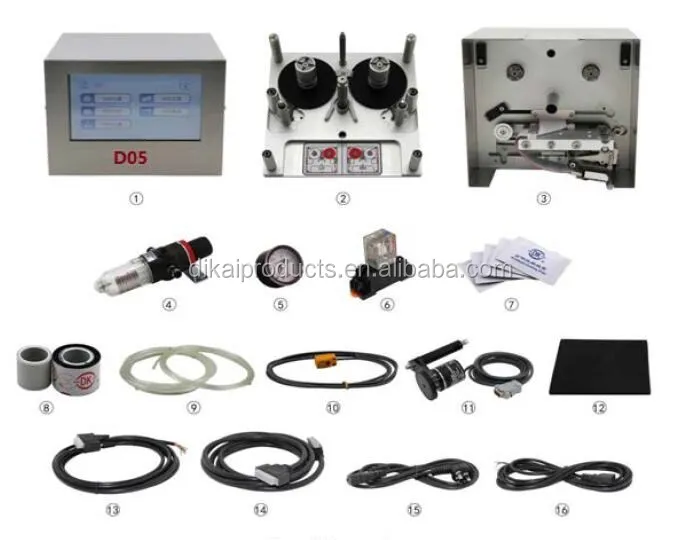

Detail introdcution:

1) D05 Controller box

2) D05 Cassette

3) D05 Print unit

4) Air pressure regular

5) Air pressure meter

6) Intermediate relay

7) Cleaning Wipe

8) Thermal transfer ribbon

9) Air pipe

10)Proximity Sensor

11)Encoder (Option for continuous mode)

12)Rubber pad(Option for intermittent mode)


.

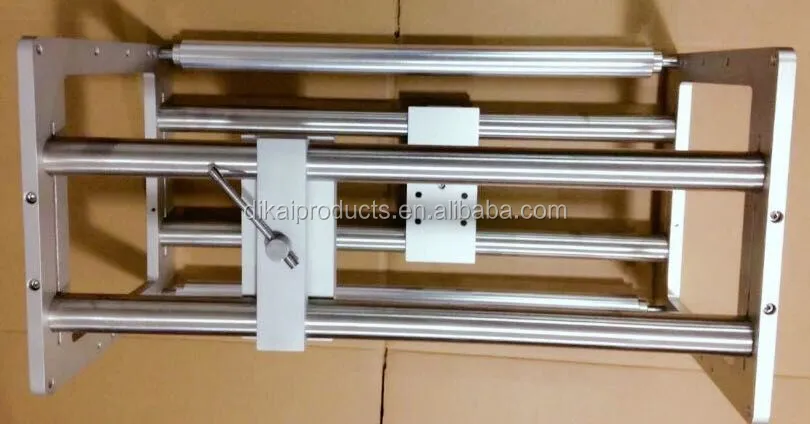

D05 Square type Continuous bracket


1) Continuous

2) Standard length: 500/600mm

3) More stable, also suitable for Markem TTO

4) Any length and shape can be customized case by case

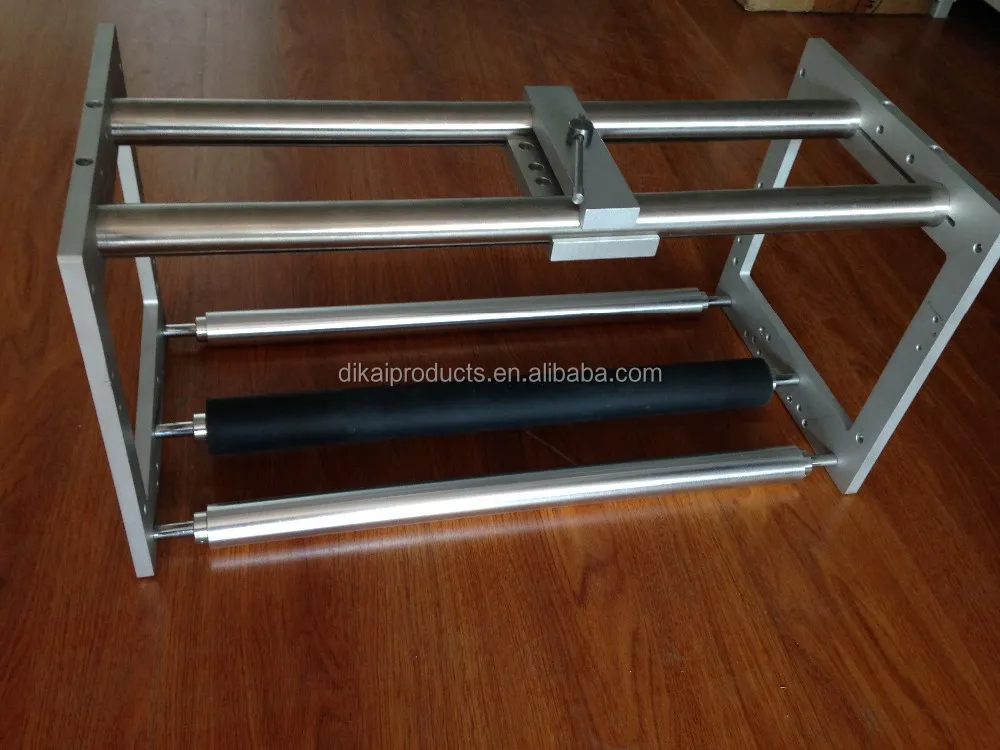

D05 Square type Intermittent bracket


1) Intermittent

2) Standard length: 500/600mm

3) More stable, also suitable for Markem TTO

4) Any length and shape can be customized





D05 Print samples

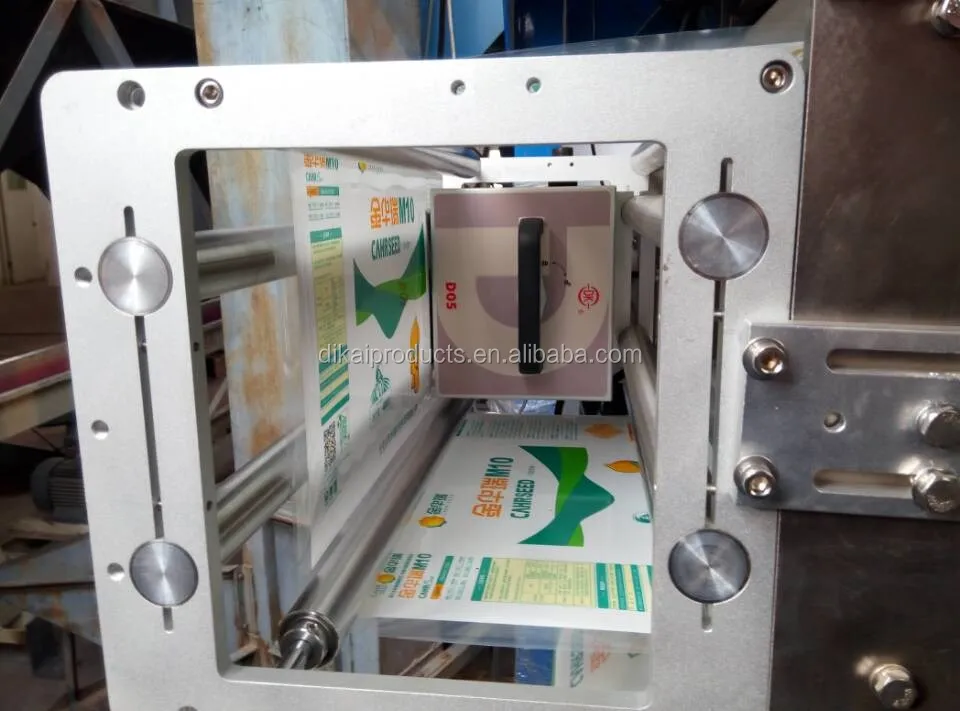

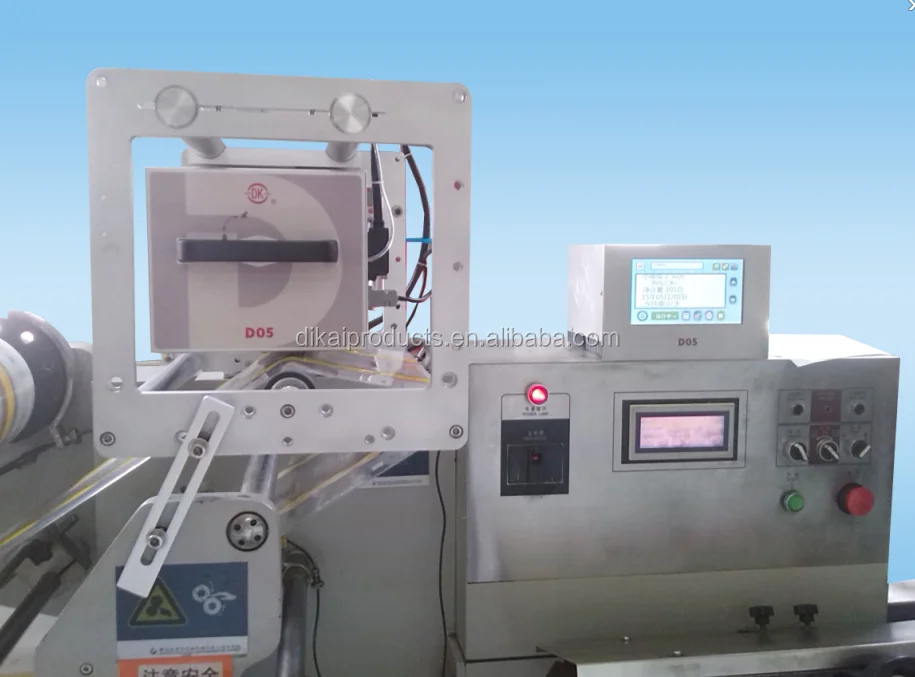

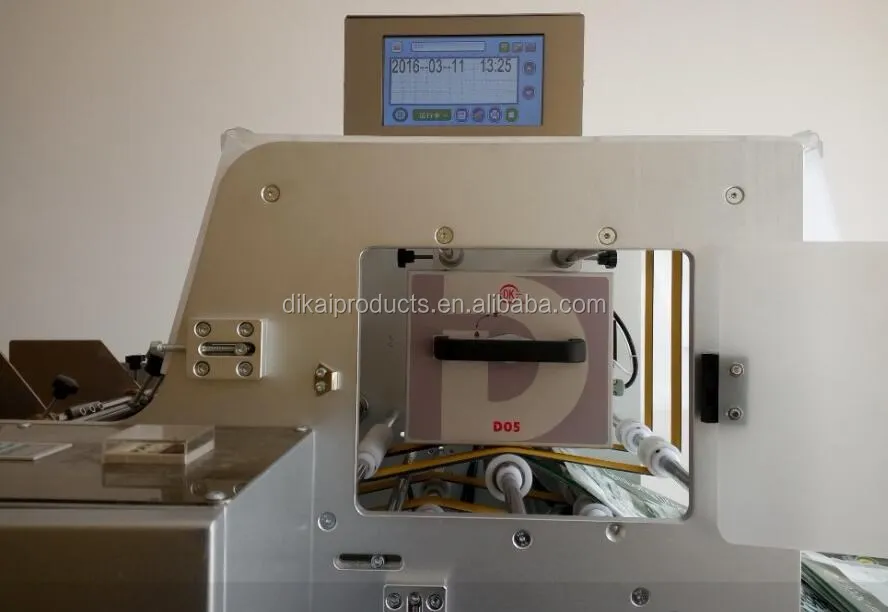

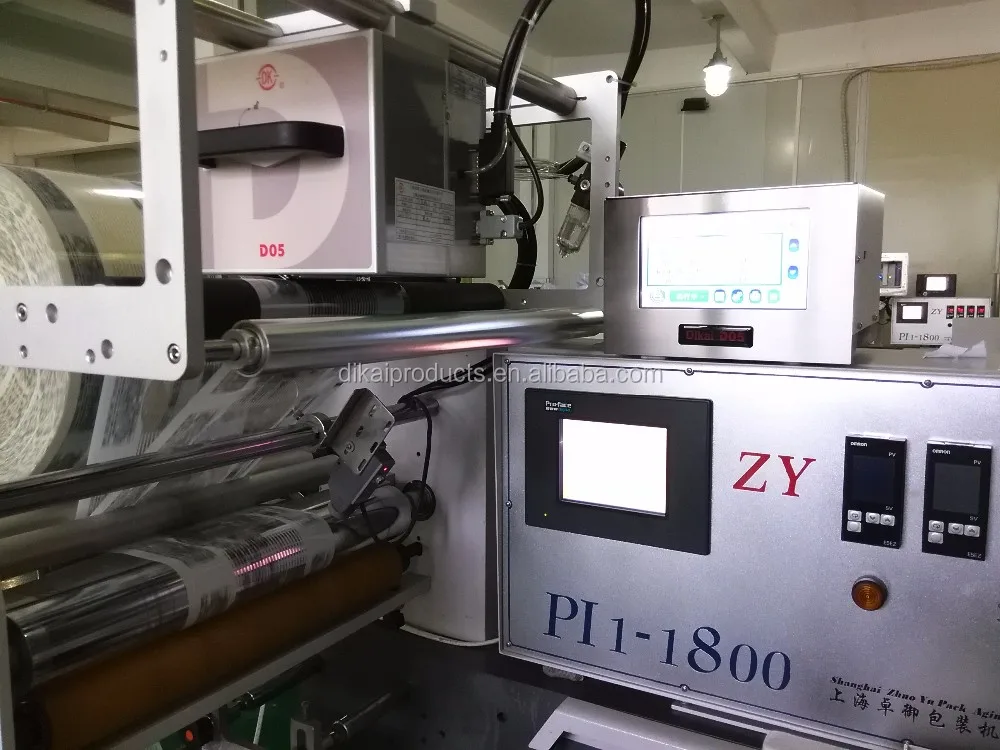

D05 Installation instance:



DIKAI D05 can be installed on different kind of packgaing machines, for example: Horizontal Continuous packaging machine, Vertical Intermittent packaing machine, Labeling Machine, Feeder etc.

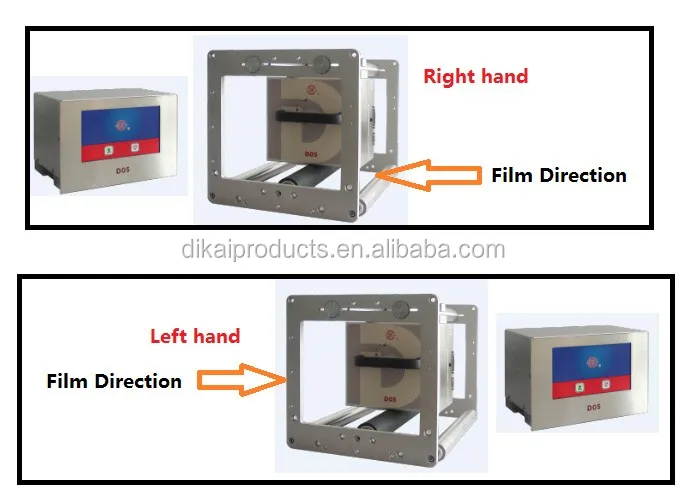

Machine optional

D05 has Right hand and left hand models for option.


How to choose:

1. Selecting the installation position first;

2. Looking at the film moving direction in the front;

3. If direction is from Right to Left----choose Right hand machine

     If direction is from Left to Right----choose Left hand machine.

Packing & Delivery

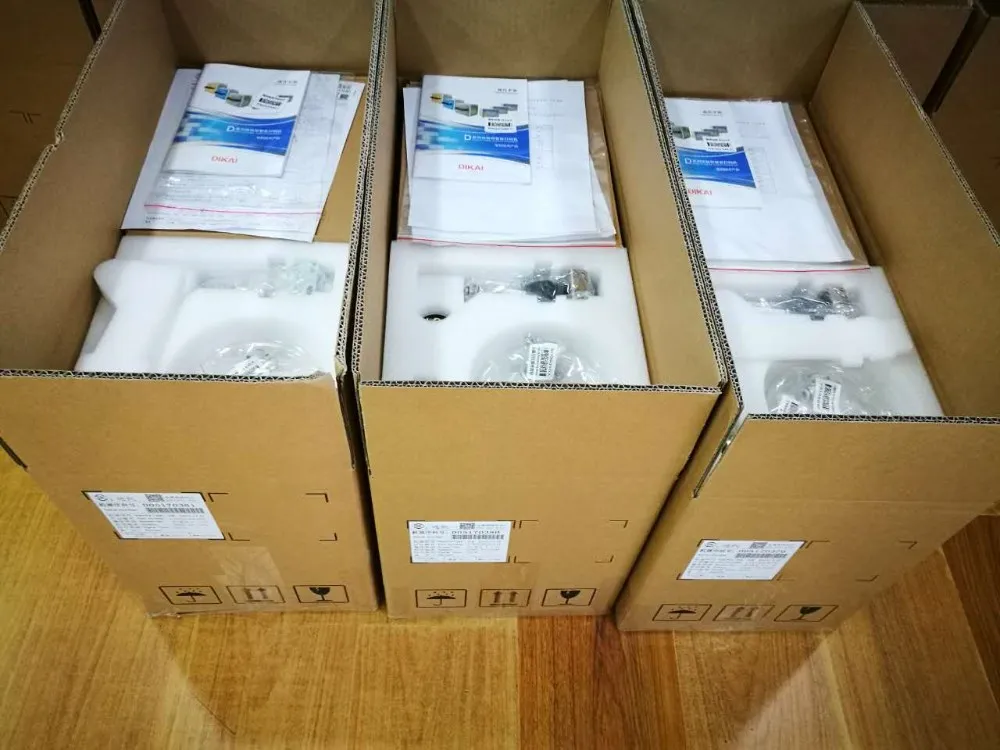

D05 Package:


1) In carton box

2)    Size: 61*30*39cm

3)    G.W: 16kgs

4)    Goods canbe delivered to customers within 1-2 weeks after order and payment being confirmed.
