DIKAI D03 Thermal Transfer Overprinter 32mm printhead Left hand or right hand option

FOB Reference Price:Get Latest Price
$1.00 - $2.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Material:
Carton
Packaging Type:
Cartons
Type:
Coding Machine
Condition:
New
Automatic Grade:
Automatic
Application:
Installed on packgaing machine to print date, barcode, logo etc.
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
DIKAI
Model Number:
D03
Driven Type:
Electric
Voltage:
AC 220V/50Hz 110V/60Hz
Power:
150W, 200w
Weight:
16kg
Certification:
CE, ROHS, MSDS
Name:
D03 Thermal Transfer Overprinter
Print head:
32mm width; Kyocera 300DPI
Max. Print area:
32mm*100mm
Printing Speed:
5-36 m/minute
Print unit size:
210mm*210mm*180mm
Controller box size:
233mm*180mm*128mm
Interface:
USB; RS232
Power supply:
AC100-240V 50/60HZ
Air supply:
6bar/90psi(max.),dry,clean
Supply Ability
Supply Ability:
600 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Packing
Port
CHINA PORT
Lead Time :
1-2 weeks after order and payment being confirmed
Product Description

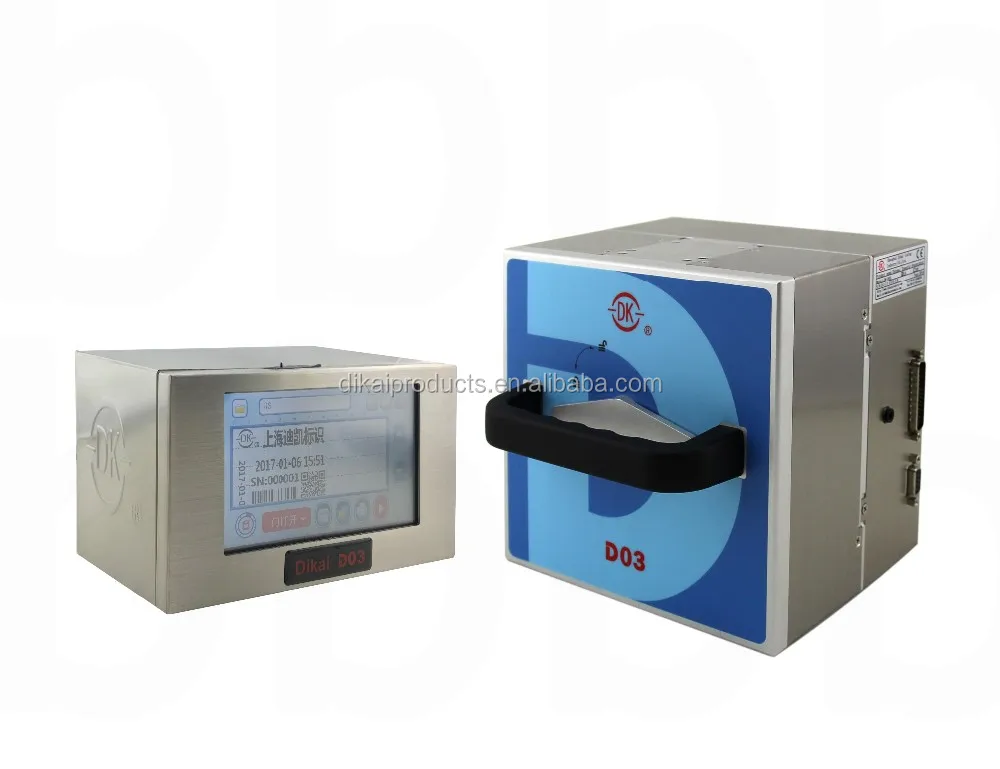

D03 Thermal Transfer Overprinter

With 32mm printhead, it is one of most cost-effective smart coding machines, provides excellent solutions to soft-packaging coding in a wide range of fields like food, pharmacy, daily use chemicals, seeds, daily use paper and financial bill etc.


Features:


1) Continuous & Intermittent Combined
2) 32mm Kyocera Printhead; 300DPI
3) Print real time, variable date, barcode, QR Code ect.
4) Low cost

5) Easy to operate


Application:


*Horizontal Continuous packaging machine
*Vertical Intermittent packaing machine
*Labeling Machine

*Feeder


Specification
Print Head
32mm, Kyocera; 300DPI
Print Area
Intermittent: 32mm*60mm
Continuous: 32mm*100mm
Ribbon Size
33mm*500m
Print Frequency
Intermittent:up to 300PPM
Continuous:up to 200PPM
Power
200w
Environmental Operating Temperature
0-40℃
Relative Humidity
10%~95% ( non- condensing)
Air Supply
6bar/90PSI(MAX) dry ,clean
Weight
print head:8.5kg, control box:2.0kg
Dimension
Print Unit:         210mm*210mm*185mm(L*W*H)
Controller box: 233mm*180mm*128mm(L*W*H)
Detailed Images

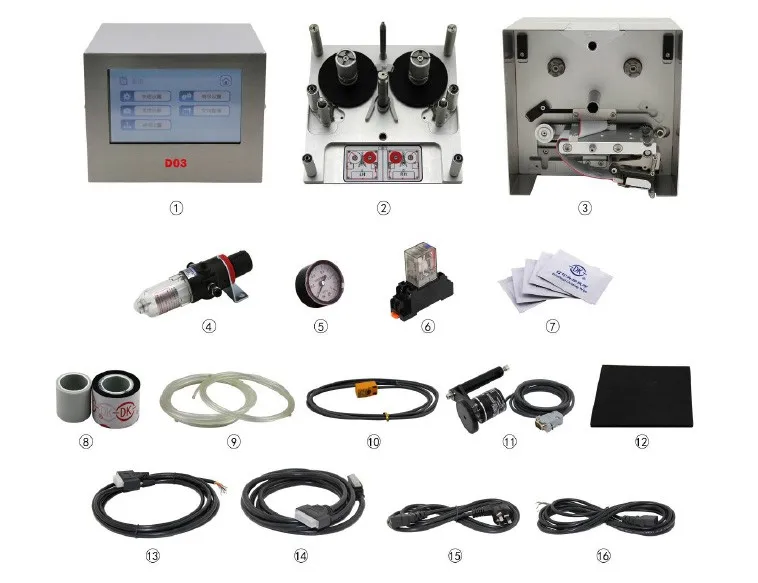

Detail introdcution:

1) D03 Controller box

2) D03 Cassette

3) D03 Print unit

4) Air pressure regular

5) Air pressure meter

6) Intermediate relay

7) Cleaning Wipe

8) Thermal transfer ribbon

9) Air pipe

10)Proximity Sensor

11)Encoder (Option for continuous mode)

12)Rubber pad(Option for intermittent mode)


.

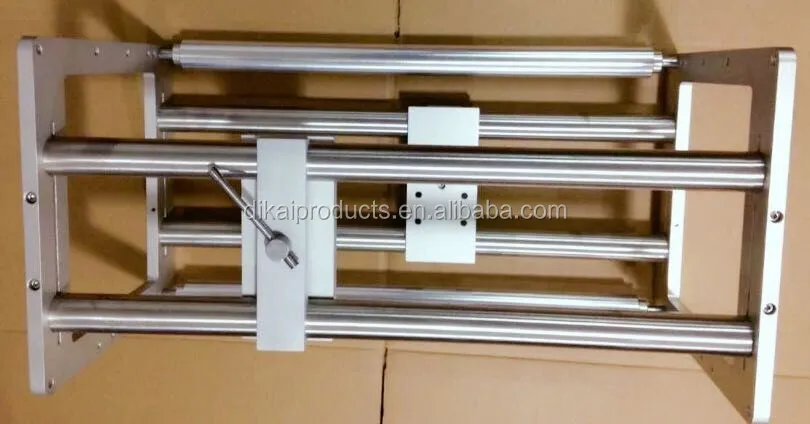

D03 Square type Continuous bracket


1) Continuous

2) Standard length: 500/600mm

3) More stable, also suitable for Markem TTO

4) Any length and shape can be customized case by case


D03 Square type Intermittent bracket


1) Intermittent

2) Standard length: 500/600mm

3) More stable, also suitable for Markem TTO

4) Any length and shape can be customized





D03 Print samples

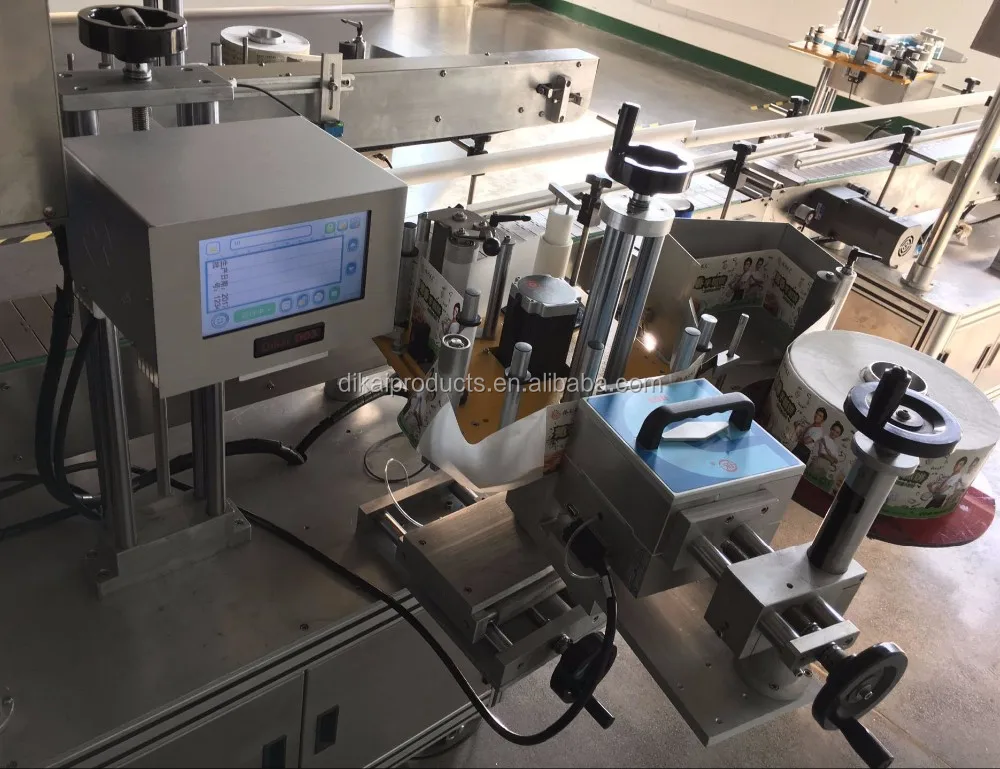

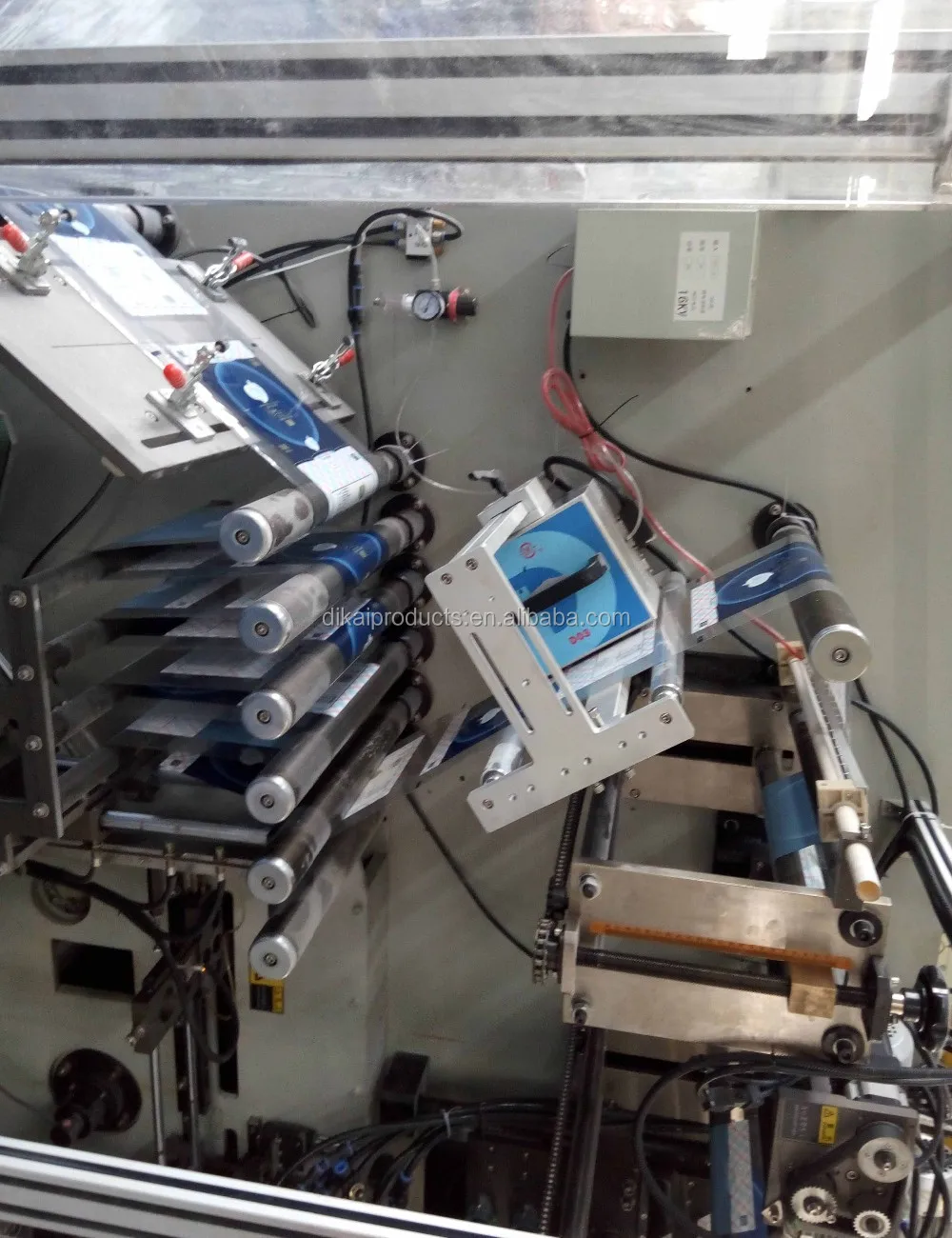

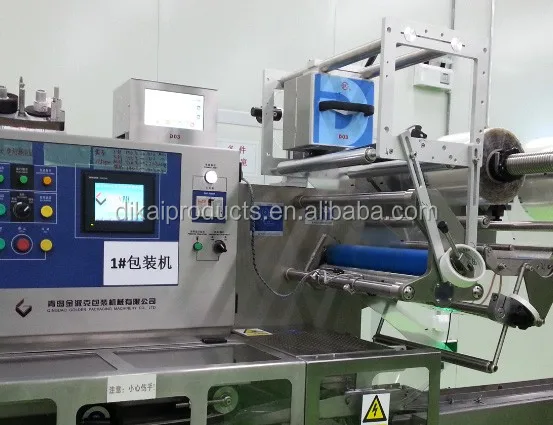

D03 Installation instance:



Packing & Delivery

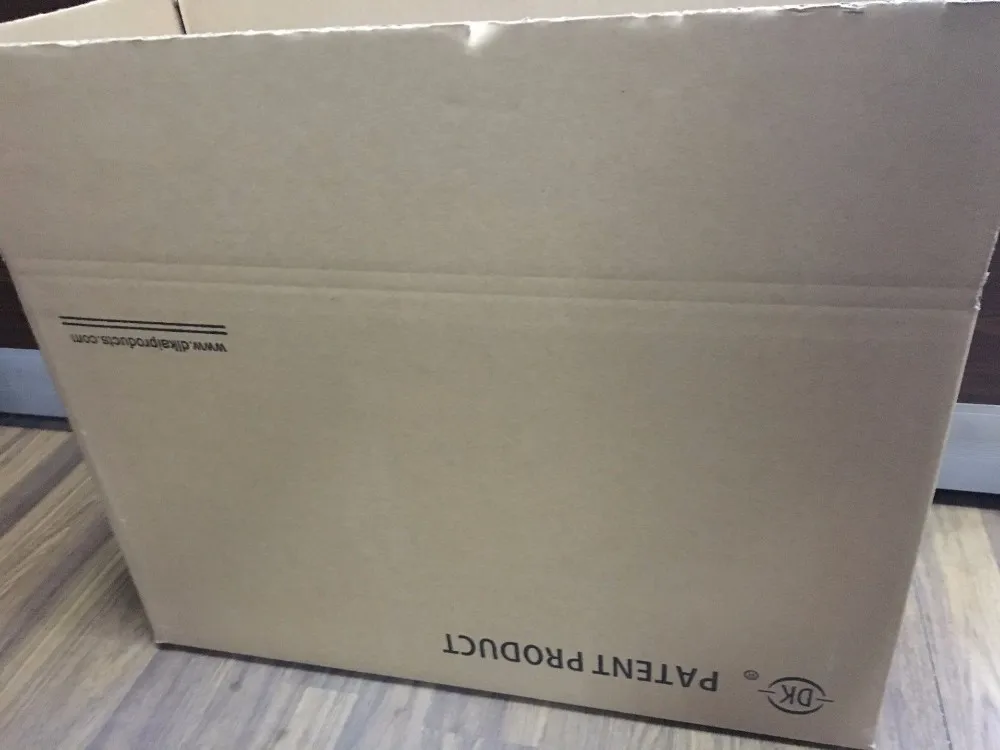

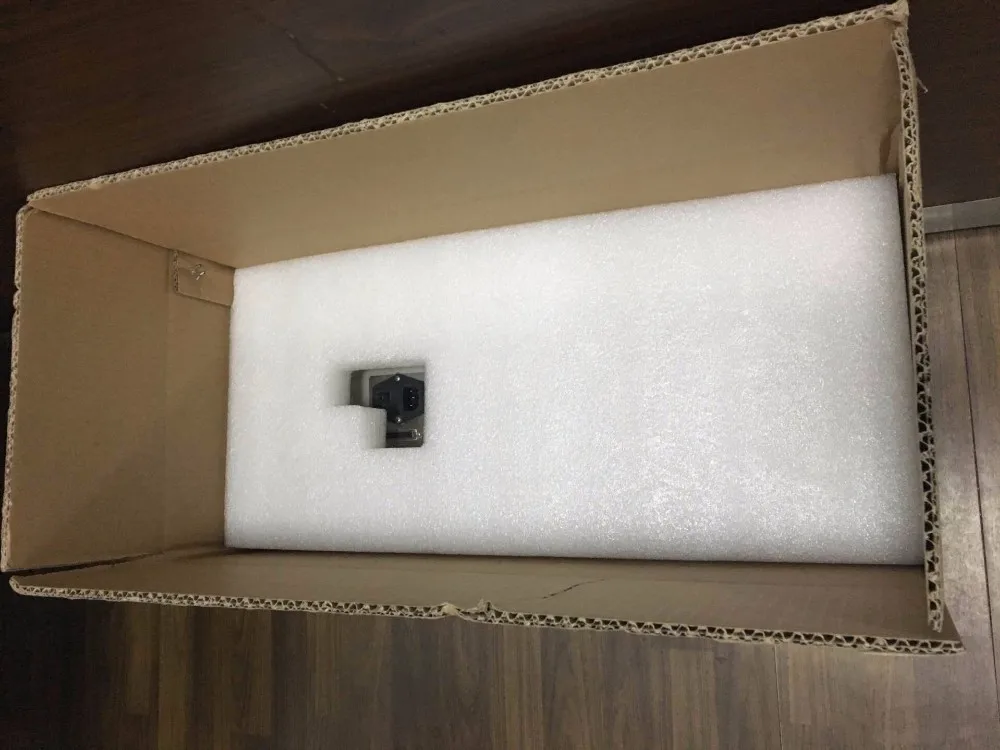

D03 Package:


1) In carton box

2)    Size: 61*30*39cm

3)    G.W: 16kgs

4)    Goods can be delivered to customers within 1-2 weeks after order and payment being confirmed.


Related Products

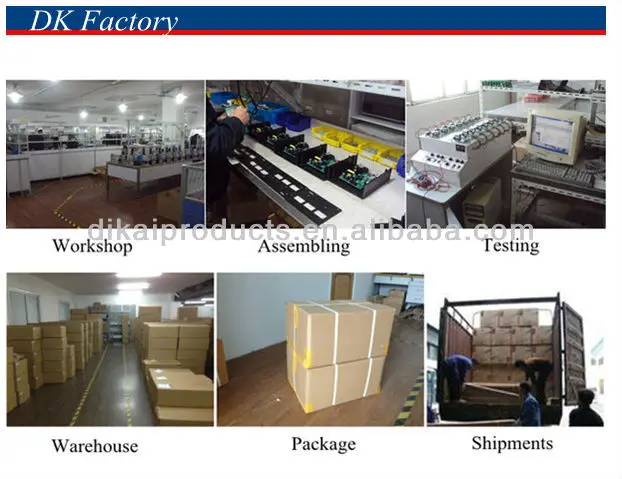

Our Company
